JPD 2304 FA
Joint Play Detector for Cars and Trucks up to 4 t Axle Load
PRODUCT DESCRIPTION

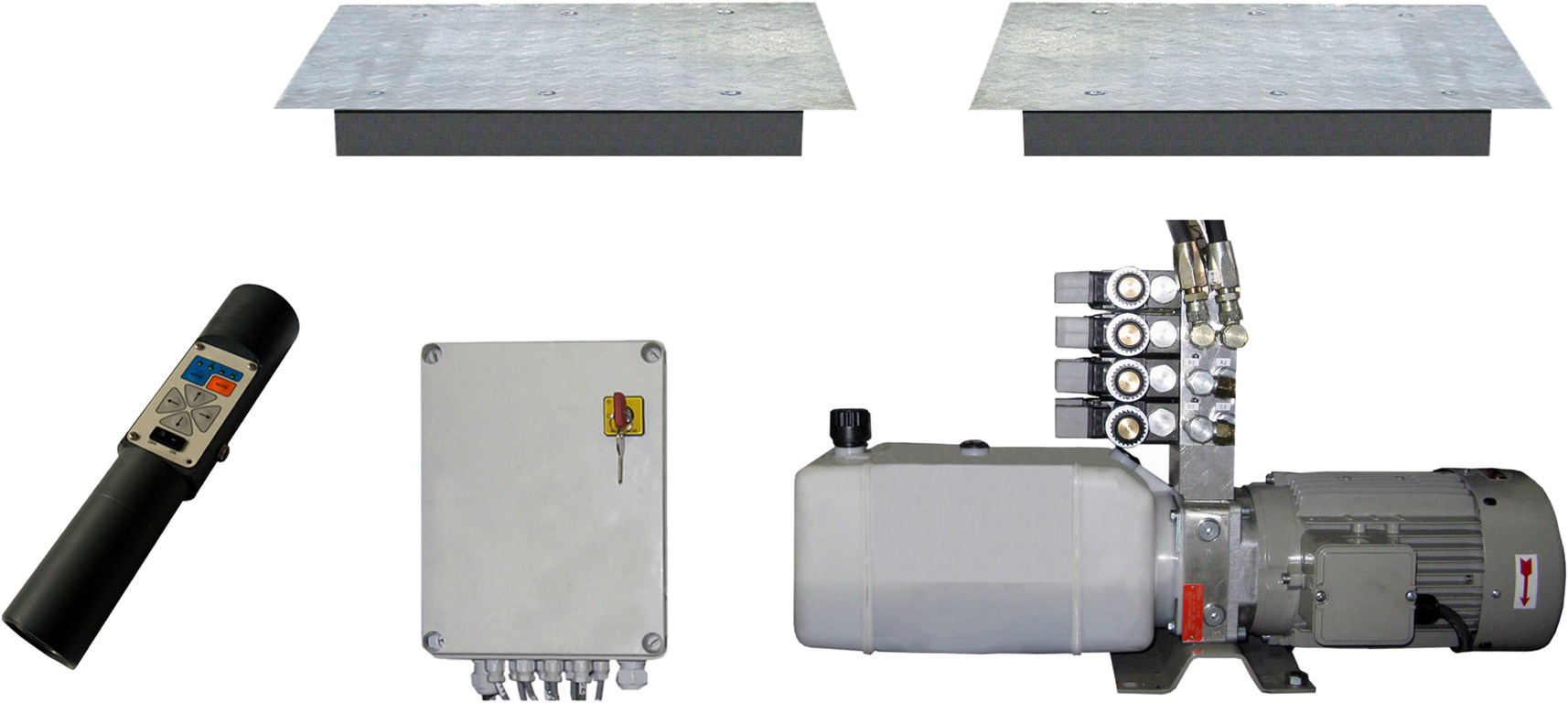

Hydraulically operated test plates, radio-controlled test lamp, power supply 3/N/PE 400/230V AC 50/60 Hz
Single control of test plates
Hydraulically operated test plates
Plate movement in counter direction (4 ways)
Plate movement in same direction (8 ways)
Check of:
- axle suspension
- axle stub
- wheel bearing
- tie-rod ends
- stabiliser
Choice of test modes via test lamp
Easy and convenient operation owing to single-touch mode
Automatic or manual operation at choice
Automatic return of test plates into home position (parking position)
Hydraulic unit
Control cabinet
Test lamp: 1 bright LED with lens
Keypad with oil- and petro-resistant foil
MEDIA
TECH SPECS
| Maximum load per axle (t) | 4 |
| Temperature range (°C) | 0 - 70 |
| Test speed (mm/s) | 50 |
| Test movement total (mm) | 50 |
| Power supply (V/Hz) | 400 / 50 |
| Fuse protection (A) | 10 |
| Weight (kg) | 81 |
| Test plate length (mm) | 663 |
| Test plate width (mm) | 663 |
| Hydraulic unit height (mm) | 390 |
| Hydraulic unit width (mm) | 610 |
| Hydraulic unit depth (mm) | 250 |
| Hydraulic unit weight (kg) | 35.6 |
| Hydraulic unit operating pressure (bar) | 160 |
| Hydraulic unit oil Capacity (l) | 6 |
| Hydraulic unit power (kW) | 1.5 |
| Hydraulic unit operating power (kN) | 11 |
